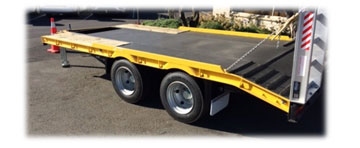

Two Axle Transporter Trailer Specifications

Two Models: Pay Load of 7 & 10 Tonne

GVM: 9980kg (capable of approx. 7 tonne payload)

OR

GVM 14000kg (capable of approx. 10 tonne payload)

Tare: 2680 - 3100kg approx., pending final specification

Axles: Two Gigant brand 5500kg (or 7000kg) rated axles with drum brakes

Chassis: Profiled and fabricated in tensile steel

Suspension Gigant brand air suspension

Wheels: 8 only steel 17.5 x 6.75 wheels dual fitmen.

Tyres: 8 only 215/70R17.5 tyres Triangle brand

Brakes: Load sensed full air brakes, with spring brakes (park brakes) on one axle. ABS braking on 1400kg trailer

Toweye: Flange mounted to suit 40mm Ringfeder type coupling

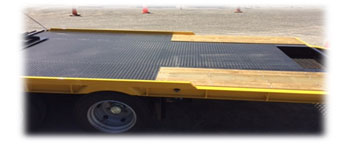

Deck: 4.4m Flat Deck plus beaver tail. 2450mm wide. 32mm timber outside of deck with chequer plate in the centre of deck. Outside facing channel side rails with anchor points. Deck height 860mm 7°, air bags deflated 760mm 15°

Storage: Chain/toolboxes built in to area between chassis on the beaver tail and between chassis at the front of the deck

Ramps: Two aluminium manual ramps standard length 1950mm

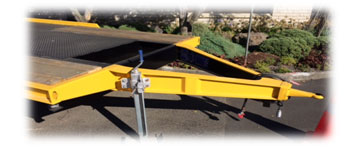

Landing Leg: 5 tonne rated wind up landing leg (empty load only)

Lighting: Hella LED combination tail lights with reverse lights. LED front and side marker lights to meet regulations

Finish: Chassis and body sandblasted and top coat painted

On Road Costs: Compliance, Registration, COF, and 1000km RUC included
